Model

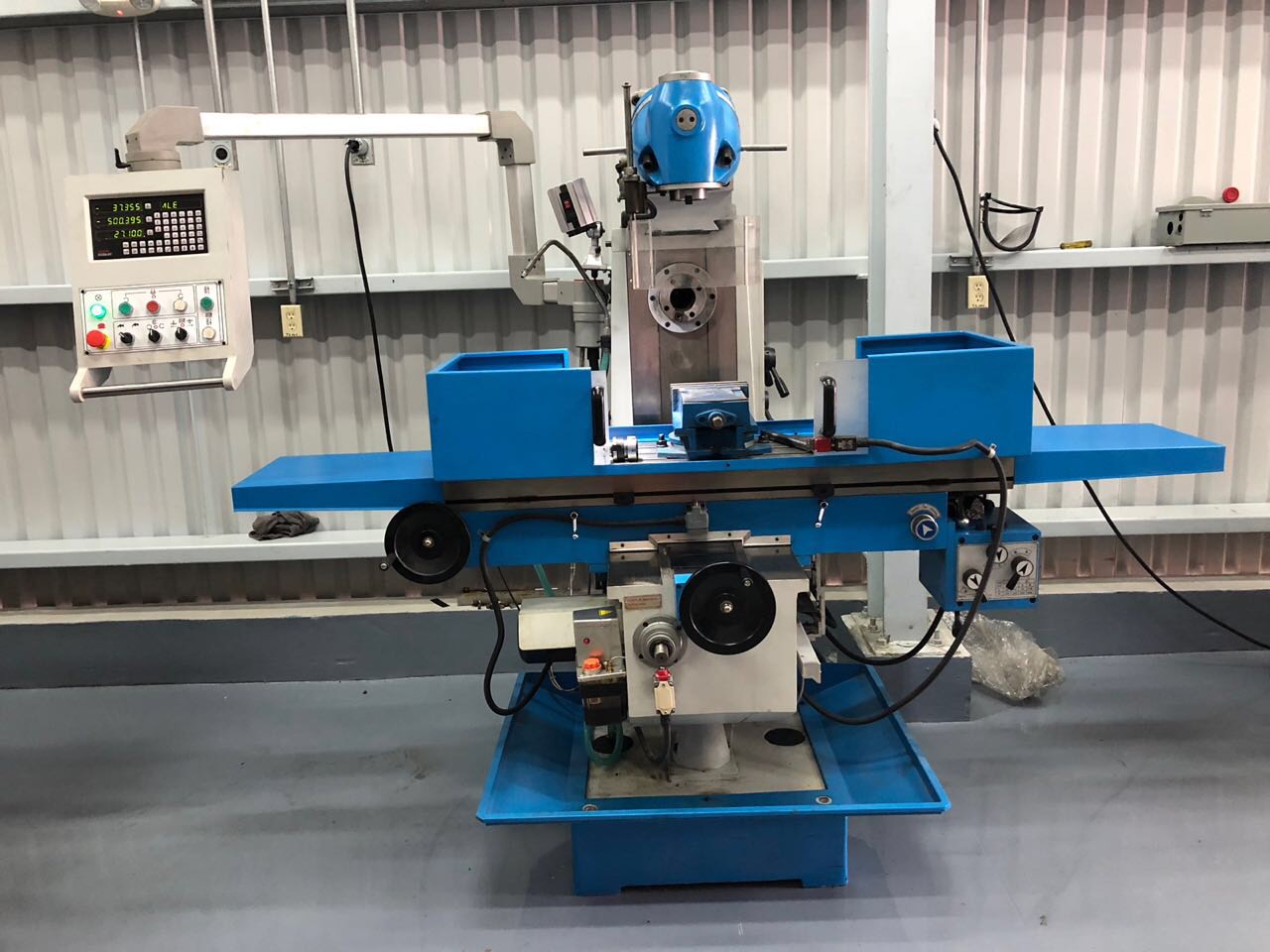

XL6236

Spindle taper (V)

7:24 ISO40

Spindle taper (H)

7:24 ISO50

Distance from spindle center line to column surface

350-850 mm

Distance from spindle nose to work table

210-710 mm

Distance from spindle center line to work table

0-500 mm

Distance from spindle center line to ram

175 mm

Spindle speed (V)

11 steps 35-1600 rpm

Spindle speed (H)

12 steps 60-1800 rpm

Table size

1370x360mm

Table travel(X/Y/Z)

1000/320/500mm

Table power feed(X/Y)

8 steps 15-370 mm/min

Rapid 540mm/min

Table elevating power feed

590 mm/min

T-slot(No./W/P)

3/18 mm/80 mm

Main motor power

3Kw (V); 4Kw (H)

Work table feed motor

750 w

Work table elevating motor

1. 1Kw

Coolant pump

90 w

Coolant flow

25L/min

Overall dimension(L x W x H)

2220 x 1790 x 2040 mm

Weight of machine

2400kg

NO.

Name

1

3-axis DRO

2

Ball screws X/Y axis

3

Aluminum hangarm

4

Spindle cover

5

Worktable cover

6

LED work lamp

7

Bakelite handwheel

8

Automatic oil lubrication

9

Clamping kit M16

10

ISO50 Milling chuck 15 pcs

11

NT50 Boring device(8-280mm)

12

125mm dividing head

13

250mm rotary table

14

320mm rotary table

15

Spindle guarding
