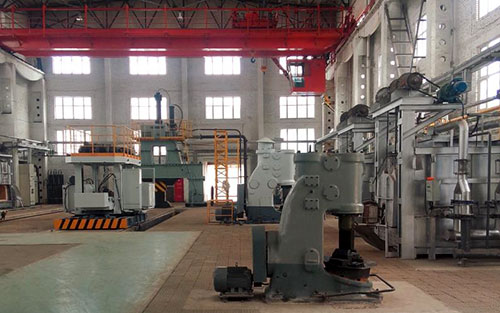

Air Hammer, Pneumatic Forging Hammer
Features
1. Unlike steam hammers or air hammers fed from
a supplementary compressor, this forging hammer is with its self-contained
cylinder, requires no ancillary power raising plant.
2. The Pneumatic forging hammer is equipped with a
self-priming lubricating oil pump, during operating, it can realize the
automatic lubrication.
3. Easy to operate, by manipulating the hand lever
or foot-pedal, all operating functions—idle run, top setting, pressing down,
single blow, light or full series blow can be obtained as desired
Technical Specifications
|
Model |
C41-150 |
C41-250 |
C41-400 |
C41-560 |
C41-750 |
C41-1000 |
C41-2000 |
|
|
Weight of falling parts(kg) |
150 |
250 |
400 |
560 |
750 |
1000 |
2000 |
|
|
Hit energy (kj) |
2.5 |
5.6 |
9.5 |
13.7 |
19 |
27 |
54 |
|
|
Hit frequency(min-1) |
180 |
140 |
120 |
115 |
105 |
95 |
80 |
|
|
Height of working area(mm) |
370 |
450 |
530 |
600 |
670 |
800 |
1000 |
|
|
Depth of throat(mm) |
350 |
420 |
520 |
550 |
750 |
800 |
950 |
|
|
Working Piece |
Square(mm*mm) |
130×130 |
145× 145 |
220× 220 |
270× 270 |
270× 270 |
290× 290 |
350× 350 |
|
Round(mm) |
Φ145 |
Φ175 |
Φ240 |
Φ280 |
Φ300 |
Φ320 |
Φ400 |
|
|
Motor |
Model |
Y180M- 4-B3 |
Y180L- 4-B3 |
Y200L- 4-B3 |
Y280S- 6-B3 |
Y280M- 6-B3 |
Y315S- 6-B3 |
Y315L2- 6-B3 |
|
Power (kw) |
18.5 |
22 |
30 |
45 |
55 |
75 |
132 |
|
|
Weight |
Without anvil(kg) |
3260 |
5000 |
8000 |
9800 |
17000 |
20000 |
48000 |
|
Outside size (mm) |
2390× 1085× 2150 |
2639× 1155× 2540 |
1785× 1400× 2884 |
3464× 1500× 3157 |
3905× 1370× 3175 |
3770× 1500× 4125 |
4200× 2300× 4390 |
|
