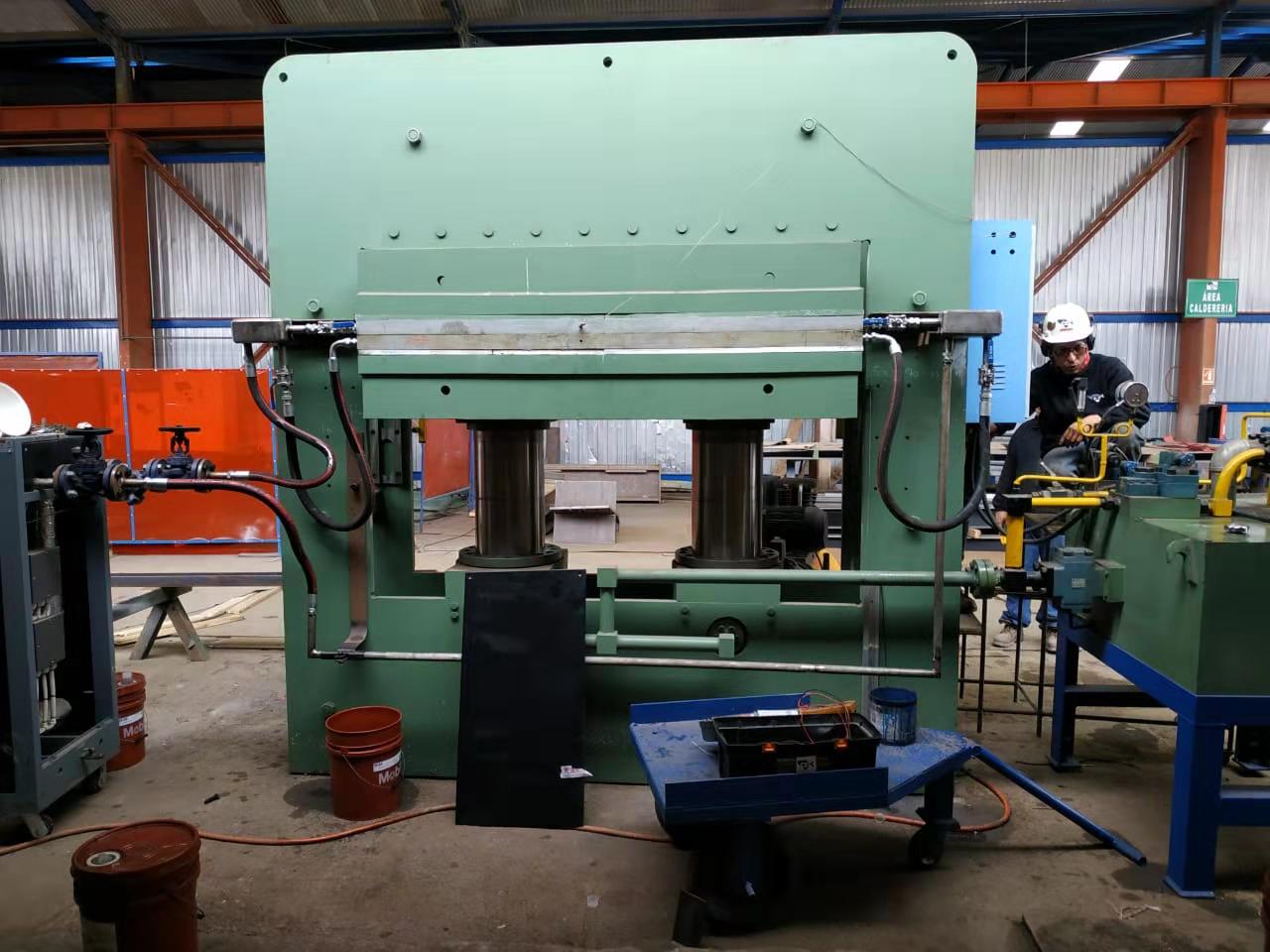

Vulcanizing Press
Model XLB-Y2000×1000×1/3.00MN
This vulcanizing press is used for rubber parts vulcanizing with mold or without mold.
It is technologically latest and advanced a complete set of machine. The machine is safe, stable, reliable, long-term operation and running.
Features:
Frame structure
Hydraulic press
Single layer or double layers
Platen size customized
Working clearance customized
Max pressure customized
Siemens PLC control
Electrical heating or oil heating
Insulation board does not contain asbestos
Perfect safety monitoring and control system
Automatic mold closing/opening, pressure packing, gas venting, vulcanizing time control, pressure control, temperature control
Distinguished components:
1. Hot plate
Hot plates are machined from 45# steel rolled and heat treated. Surface finish Ra≤1.6um.
2. Top and bottom Table
Top and bottom tables are made of Q235 steel high quality weldment, with heat treatment after welding as a whole into the furnace, thoroughly eliminate the welding stress, and then precision machined, to ensure no deformation in the course of using.
3. Oil cylinder
The oil cylinder made of ZG270-500 cast steel, piston uses cast steel alloy Chilled. Each cylinder body sets control value, sealing structure with double way sealing ring and a combination of dust ring structure, ensuring the long time using.
4. Heat insulation board
Insulation board does not contain asbestos, coefficient of thermal conductivity 0.022 w/m.k, temperature 180 ℃ ~ 200 ℃, thickness of δ 15mm.
5. Hydraulic system
The hydraulic station is on the side of the machine. It has system safety pressure limiting device, with automatic pressure compensation function, hydraulic devices and control valve safety interlock. According to process flow and motion requirement to the hydraulic system design, the main hydraulic parts use YUKEN or similar high quality components to ensure that equipment quality and operation reliability.
6. Safety
Perfect safety monitoring and control system-: Install the emergency stop button on the operator panel and install the active stop switch and the emergency stop button box at the appropriate operating positions of the equipment.
Laser safety curtain (optional)
Technical Specifications XLB-D2000×1000×1/3.00MN
|
No. |
Item |
Technical parameter
|
|
1 |
Total pressure |
300T |
|
2 |
Platen size |
2000×1000×60mm |
|
3 |
Working clearance |
500mm |
|
4 |
Working unit pressure |
15.0kgf/cm² |
|
5 |
Cylinder material |
The plunger moves up and down from the bottom up.
The plunger moves up and down from the bottom up.
|
|
6 |
No.of cylinder and Diameter |
2-Φ320 |
|
7 |
Piston Stoke |
500mm |
|
8 |
Working pressure |
18.7 MPa |
|
9 |
Heating manner |
Electric heating |
|
10 |
Max. Temperature |
200℃ |
|
11 |
Auxiliary oil cylinder |
2-40mm |
|
12 |
Heating manner |
Oil |
|
13 |
Control |
PLC Automatic control |
|
14 |
Configuration |
Frame |
|
15 |
Main machine size |
2800*1000*3050mm |
|
16 |
Total weight |
~12600kg |

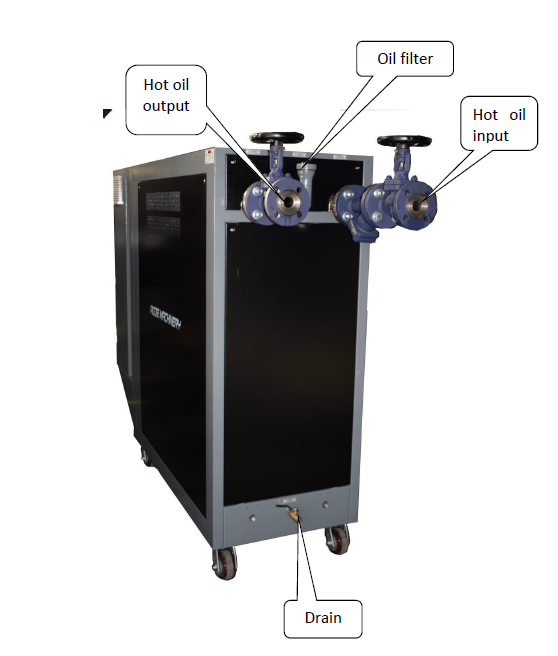

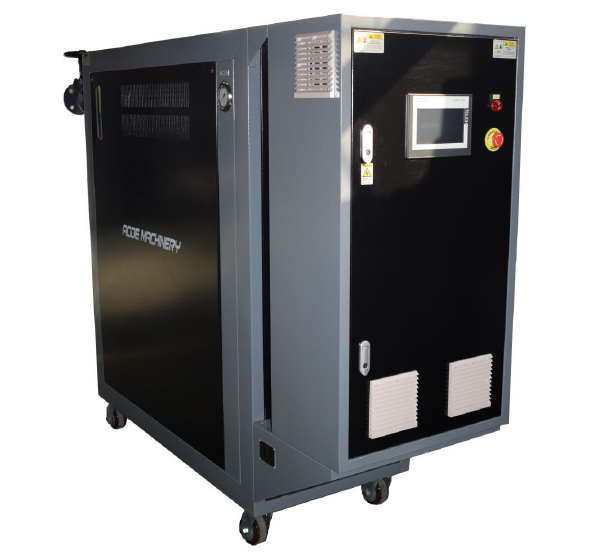

Oil heater & mold temperature control unit(option)
Below connection between Press and Oil Heater for reference only
 |
