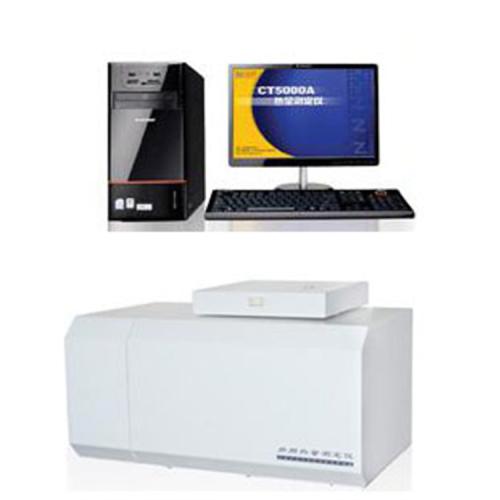

Calorimeter

This is a bomb calorimeter used for the accurate, rapid and direct determination of calorific value of combustibles such as coal, coke, petroleum and cement black meal raw materials, and is suitable for medium-sized companies and schools.

Features:

1. No need of adjusting water temperature

2. Quick measuring technology

3. Less calorific value precision measuring technology

4. Cotton thread igniting technology

5. H content precision predict technology.

6. Remote diagnose technology

Technical Specifications Model CT5000

1. Thermal capacity accuracy：≤0.2%

2. Long term stability：≤0.20%

3. Calorific value of parallel samples maximum error: for coal

For coal：≤120KJ/kg

For gangue：≤60 KJ/kg（China Mining University patent）

4. Calorific value measuring time: normal measuring main period 8 minutes (full period 12-19 minutes); gangue quick measuring main period 4 minutes (full period 7 minutes).

5. Temperature resolution：0.0001℃

6. Measuring scope：0-32MJ/KG

7. Ambient condition：temperature 2-39℃，relative humidity ＜80%

8. Power supply: 220V±20V，50Hz±1Hz

9. Power consumption：＜50W

10. Main machine overall dimension (LxWxH)（mm）：650×390×390
